Detailed description
Type of mechanism
TE Mechanism. This mechanism is fitted with a wheel to enable a precise control of the concrete flow. This mechanism also offers a lever control of the gate. Warning: a non-continuous flow of concrete between the bucket and the pipe might provoke untimely overflowing.
Presentation
Upright concrete skip with fork pockets and bale arm.
Means of handling
- Either by crane with its bale arm
- Or by forklift with its fork pockets
Safety
This skip is fitted with 2 fork pockets with a safety system to lock forks inside the pockets.
Discharge type
Central.
Gate operation
Wheel.
Skips with capacities of 1000L and above are fitted with the auxiliary gate closing option to ease the gate closure.
Characteristics
- Skip belt in U profile for a higher robustness

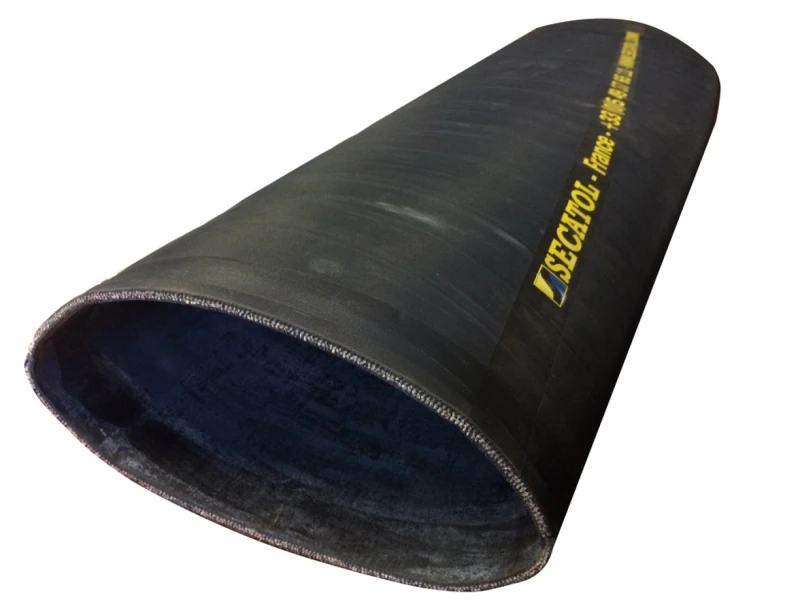

- Supplied with a 3 meter long hose, 200mm diameter (in option Ø 90, 150 or 250 mm)
- Hydraulic actuator option
Image description
Technical specifications
Code
Capacity
h (mm)
h1 (mm)
H (mm)
L (mm)
l (mm)
A (mm)
Ef (mm)
Lf (mm)
Df (mm)
h2 (mm)
SWL (kg)
Weight (kg)
Price excl
Cart
47035FU
350 L
1200
2005
1290
1190
1320
1050
55
155
725
815
840
236
394
13 day(s)
€2,477.75
47050FU
500 L
1340
2145
1475
1190
1320
1050
55
155
725
815
1200
251
419
13 day(s)
€2,536.40
47060FU
600 L
1375
2345
1505
1340
1585
1200
85
185
800
815
1440
342
571
13 day(s)
€3,030.25
47080FU
800 L
1515
2485
1645
1340
1585
1200
85
185
800
820
1920
359
599
13 day(s)
€3,138.20
47100FU
1000 L
1655
2625
1785
1340
1585
1200
85
185
800
820
2400
375
626
13 day(s)
€3,162.00
47125FU
1250 L
1665
2740
1975
1635
1805
1500
85
185
820
840
3000
538
898
13 day(s)
€3,998.40
47150FU
1500 L
1780
2850
2085
1635
1805
1500
85
185
820
840
3000
558
931
13 day(s)
€4,408.95
47200FU
2000 L
2040
3110
2380
1635
1855
1500
85
185
820
840
4800
650
1085
13 day(s)
€5,058.35
Accessories and complementary products
Additional hose length option (per meter)
Reference : OPT TUYAU SUPPLEMENTAIRE
€63.00
-15%
€53.55 EXCL VAT

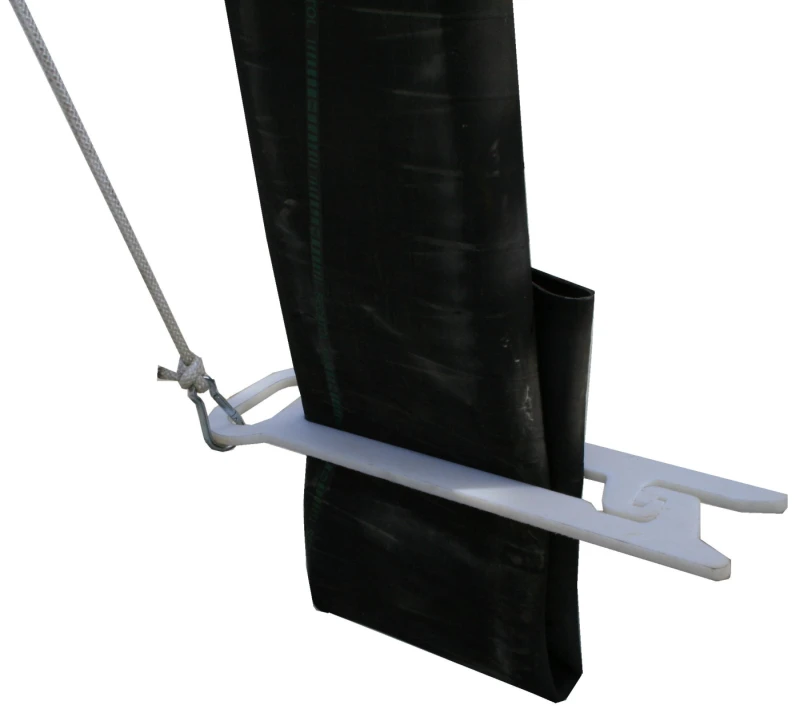

Hose clip for concrete skips
Reference : PINCE À TUYAU
Additional hose length option (per meter)
Reference : OPT TUYAU SUPPLEMENTAIRE
Option diamètre différent du cône et tuyau (1.5m) TE / TEC
Reference : OPT DIAMETRE CONE TE / TEC
